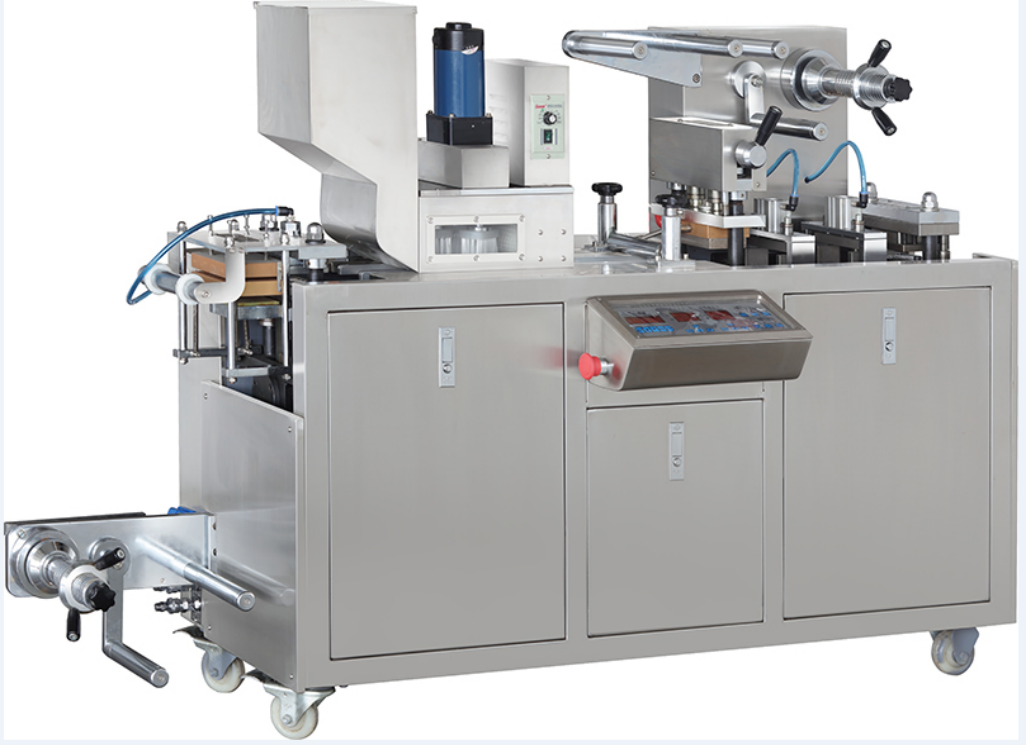

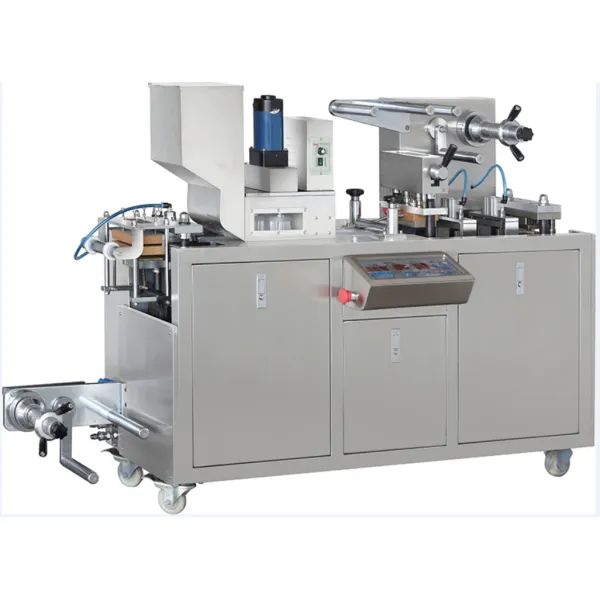

DPP-120A Flat Type Blister Packing Machine
A blister packaging machine is an automated or semi-automated device designed to package products in pre-formed plastic blisters (cavities) sealed with a lidding material (typically aluminum foil or cardboard). This type of packaging is widely used in pharmaceuticals, food, electronics, cosmetics, and consumer goods for its protective, tamper-evident, and visually appealing properties.
Specification
EQUIPMENT CHARACTERISTICS
1. PLC and servo motor traction ensure stable operation and easy operation.
2. The device adopts imported cursor eyes, with precise cursor alignment.
3. Equipped with internationally renowned brand imported touch screens and other electrical configurations, it is easy to operate and maintain. The equipment is equipped with automatic error alarms to protect the equipment. The traction length can be set through the touch screen.
4. The replacement of equipment molds is simple, using positioning pins. Under proficient operation, the mold replacement and debugging time should not exceed 30 minutes.
5. The equipment is an aluminum plastic, aluminum aluminum integrated machine, which can be packaged with aluminum plastic and aluminum products by changing molds and feeders.
Key Components
Forming Station – Heats and molds a plastic sheet (PVC, PET, PP, etc.) into blister cavities.
Product Loading Station – Manually or automatically places products into the formed blisters.
Sealing Station – Applies heat and pressure to bond a lidding material (foil or film) to the blister sheet.
Punching/Cutting Station – Cuts individual blister packs from the main sheet.
Control System – PLC or touch-screen interface for adjusting temperature, speed, and sealing parameters.
right elevation
left elevation
front elevation
Technical Parameter
MODEL | DPP-120A | DPP-170A | DPP-270A |
Output Capacity | 2000-4000blister/hour | 3000-6000 blister/hour | 2000-10000 blister/hour |
Driving Length | 30-90mm | 30-110mm | 30-130mm |
Max. Blister Size | 120×90×20 mm | 170×100×25 mm | 260×120×30 mm |
Air Consumption | ≥0.4 m³/min | ≥0.4 m³/min | ≥0.5 m³/min |
Max. Plastic Forming Film Size | (Width×Thickness)120×(0.1-0.5)mm | (Width×Thickness) 180×(0.1-0.5) mm | (Width×Thickness) 270×(0.1-0.5) mm |
Max. Sealing Foil Size | (Width×Thickness) 120×(0.02-0.04)mm | (Width×Thickness) 180×(0.02-0.04) mm | (Width×Thickness) 270×(0.02-0.04) mm |
Voltage | 220V | Customized | 220/380V |
Power | 4.5 KW | 6.5KW | 8.5KW |
Weight | 520 KG | 900KG | 1600KG |
Dimension | 1900×660×1730mm | 2500×570×1730mm | 3900×740×1700mm |
We can customize the production line according to your requirements
